Wire Manufacturing Parameters
From our manufacturing facility Garnett Wire supplies a comprehensive range of metallic card clothing.
High Quality Materials
- High grade carbon steel
- Precision rolled section
- Hardened and tempered for secure mounting and durability
Precision Manufacturing
- Cut to point precision tooth
- Aluminium and plastic interlocking base wires
- Bespoke specifications
- Stainless steel and variable pitch available
Basic Wire Specifications
| Wire | Max Height (mm) | Max Tpi (mm) | Angle ° |
|---|---|---|---|
| V6 | 7.5 | 24 | 30° - 90° |
| V8 | 8 | 48 | 30° - 90° |
| V10 | 8 | 120 | 30° - 90° |
| V12 | 8 | 144 | 30° - 90° |
| V16 | 8 | 224 | 30° - 90° |
| V20 | 6 | 280 | 30° - 90° |
| V24 | 6 | 384 | 30° - 90° |
| V28 | 5 | 420 | 30° - 90° |

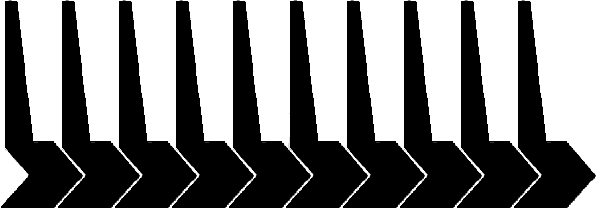

Interlocking Wire
- Available from 4 to 28 rows per inch
- Interlocking features ensure wire remains on the roller even after breakage has occurred
- Prevents costly damage and loss of card clothing on adjacent rollers

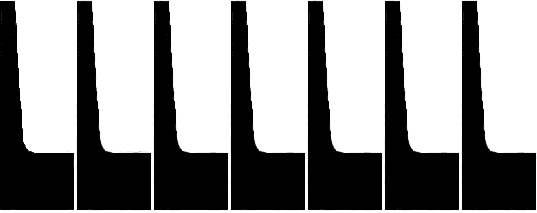

Surface Wound Wire
- Available from 8 to 42 rows per inch
- Higher row specifications produce concentrated point densities
- Ideal where load on the wire does not require interlock system
- Lightweight non-wovens, worsted cylinder and a full range of different wires

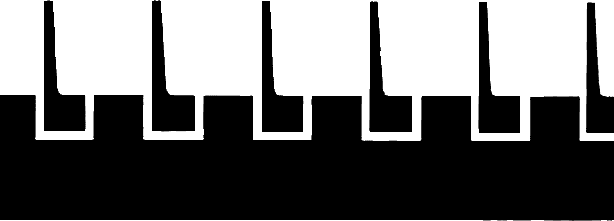

In-Groove Wire
- Available from 2 to 13 rows per inch
- Precisely engineered to ensure tight friction fit withstand working pressures on tooth
- Particularly used on feed rollers and multi starts
Wire Applications
Morel
Non-woven Cylinder/Worker
High Production Doffer
Woolen / Worsted
Blow Room
Random Pitch

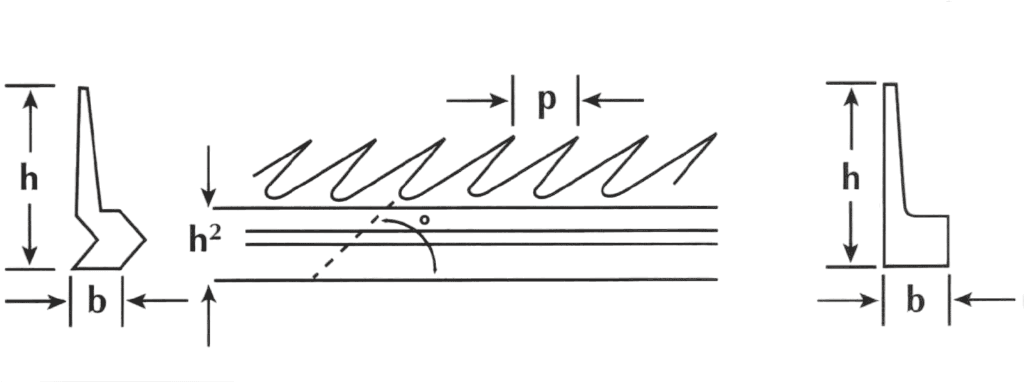

Detailed Wire Specifications
Interlocking Wires h² = 2.2mm
| Wire Ref | Base b (mm) | Height h (mm) | Pitch p(mm) | Front Angle° | PPSI |
|---|---|---|---|---|---|
| V6/360 | 4.25 | 7.5 | 8.5 | 60° | 18 |
| V6/365 | 4.25 | 6.0 | 8.5 | 65° | 18 |
| V8/3553 | 3.2 | 7.5 | 7.3 | 53° | 28 |
| V8/460 | 3.2 | 6.0 | 6.3 | 60° | 32 |
| V8/4570 | 3.2 | 6.0 | 5.5 | 70° | 36 |
| V10/3670 | 2.5 | 6.0 | 7.0 | 70° | 36 |
| V10/553 | 2.5 | 5.25 | 5.0 | 53° | 50 |
| V10/560 | 2.5 | 5.5 | 5.0 | 60° | 50 |
| V10/480 | 2.5 | 6.0 | 6.3 | 80° | 40 |
| V12/565 | 2.1 | 5.0 | 5.0 | 65° | 60 |
| V12/575 | 2.1 | 5.0 | 5.0 | 75° | 60 |
| V14/670 | 1.8 | 5.0 | 4.2 | 70° | 84 |
| V14/550H | 1.8 | 6.5 | 5.0 | 50° | 70 |
| V16/553 | 1.6 | 5.0 | 5.0 | 53° | 80 |
| V16/5585 | 1.6 | 5.0 | 4.6 | 85° | 88 |
| V18/6350H | 1.4 | 6.0 | 4.0 | 50° | 113 |
| V20/560 | 1.3 | 5.0 | 5.0 | 60° | 100 |
| V20/775 | 1.3 | 5.0 | 3.6 | 75° | 140 |
Interlocking Wires h² = 1.5mm
| Wire Ref | Base b (mm) | Height h (mm) | Pitch p(mm) | Front Angle° | PPSI |
|---|---|---|---|---|---|
| V8/365 | 3.2 | 5.0 | 8.5 | 65° | 24 |
| V12/570 | 2.1 | 4.5 | 5.0 | 70° | 60 |
| V16/675 | 1.6 | 4.5 | 4.2 | 75° | 96 |
| V16/760 | 1.6 | 4.5 | 3.6 | 60° | 112 |
| V20/6350H | 1.3 | 5.5 | 4.0 | 50° | 126 |
| V20/8570 | 1.3 | 4.0 | 3.0 | 70° | 170 |
| V24/665 | 1.1 | 4.5 | 4.2 | 65° | 144 |
| V24/1070 | 1.1 | 4.0 | 2.5 | 70° | 240 |
| V24/6350H | 1.1 | 5.5 | 4.0 | 50° | 151 |
| V28/880 | 0.9 | 3.5 | 3.2 | 80° | 224 |
| V28/955 | 0.9 | 4.5 | 2.8 | 55° | 252 |
